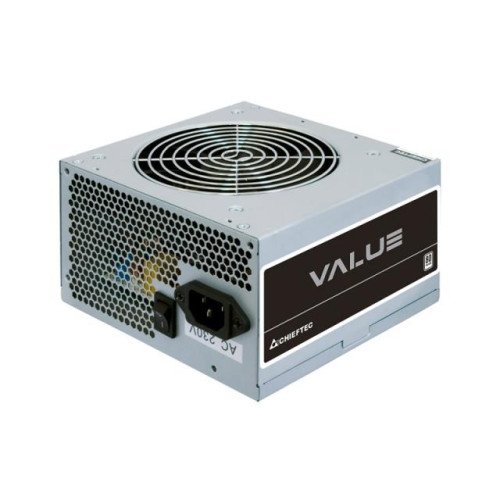

CASE PSU ATX 600W/APB-600B8 CHIEFTEC

Technical Specifications

• Summary: Chieftec Value APB-600B8. Total power: 600 W, AC input voltage: 200 - 240 V, Peak power: 600 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Steel, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CE, RoHS
• Vendor Homepage: https://www.chieftec.eu/products-detail/181/VALUE_SERIES/526/APB-600B8
• Name: CASE PSU ATX 600W/APB-600B8 CHIEFTEC
• Category Code: PSU
• Total power: 600
• Peak power: 600
• AC input voltage: 200 - 240
• AC input frequency: 47 - 63
• Maximum input current (@220V): 4.5
• Combined power (+3.3V): 120
• Combined power (+12V): 552
• Combined power (+5V): 120
• Combined power (-12V): 3.6
• Combined power (+5Vsb): 12.5
• Max output current (+3.3V): 20
• Max output current (+12V1): 46
• Max output current (+5V): 20
• Max output current (-12V): 0.3
• Max output current (+5Vsb): 2.5
• Motherboard power connector: 20+4 pin ATX
• Motherboard power cable length: 550
• Number of SATA power connectors: 4
• SATA power cable length: 150/500
• Peripheral (Molex) power connectors (4-pin): 2
• Peripheral (Molex) power cable length: 150/500
• EPS power connector (4+4 pin): Yes
• PCI Express power connectors (6+2 pin): 2
• Floppy disk drive cable length: 150
• Floppy disk drive connector: Yes
• Cabling type: Non-Modular
• 80 PLUS certification: 80 PLUS
• Purpose: PC
• Power supply unit (PSU) form factor: ATX
• ATX version: 2.3
• Product colour: Steel
• Cooling type: Active
• Fan diameter: 120
• Number of fans: 1
• Fan location: Top
• On/off switch: Yes
• Compliance certificates: CE/RoHS
• Width: 150
• Depth: 140
• Height: 87
• Weight: 1420
• Package weight: 1560
• Harmonized System (HS) code: 84733020
• Model name: ​APB-600B8
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.003168
• Unit Calculated Weight: 1.5
