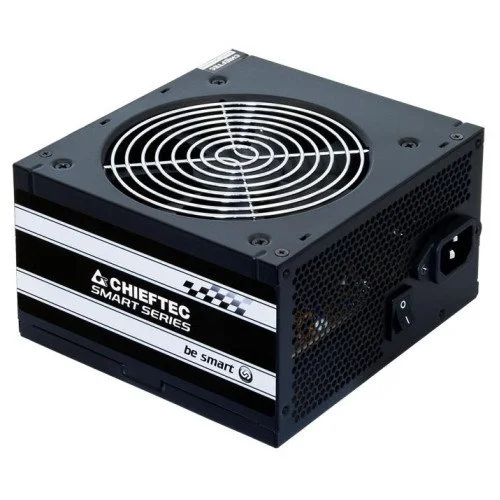

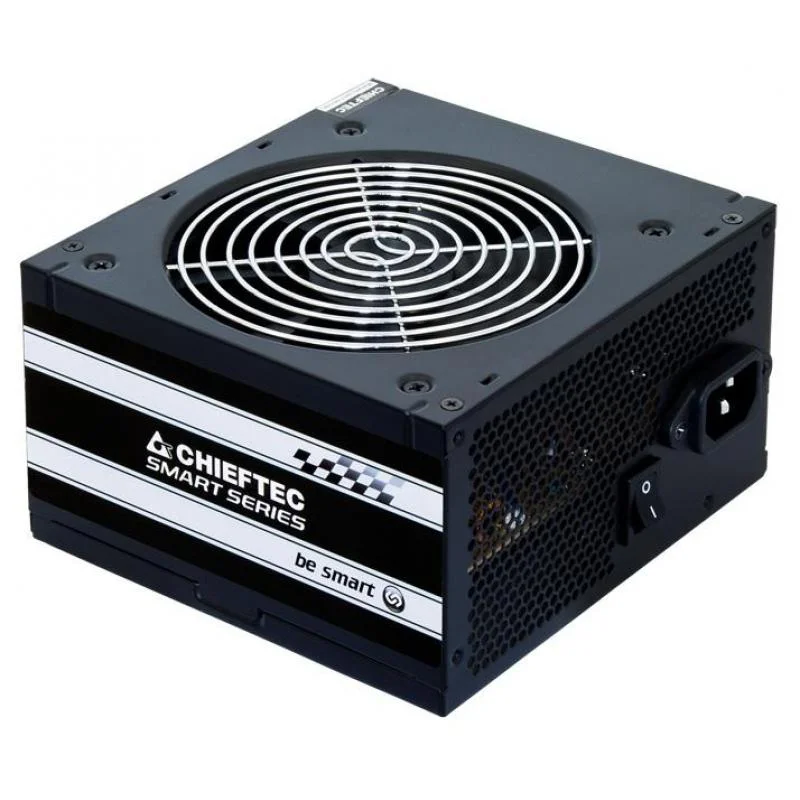

CASE PSU ATX 600W/GPS-600A8 CHIEFTEC

Technical Specifications

• Summary: Chieftec Smart GPS-600A8. Total power: 600 W, AC input voltage: 230 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 87 mm
• Vendor Homepage: https://www.chieftec.eu/products-detail/178/SMART_SERIES/241/GPS-600A8
• Name: CASE PSU ATX 600W/GPS-600A8 CHIEFTEC
• Category Code: PSU
• Total power: 600
• AC input voltage: 230
• AC input frequency: 47 - 63
• Input current: 4.5
• Power Factor Correction (PFC) type: Active
• Combined power (+3.3V): 120
• Combined power (+5V): 120
• Combined power (-12V): 3.6
• Combined power (+5Vsb): 12.5
• Max output current (+3.3V): 20
• Max output current (+12V1): 46
• Max output current (+5V): 20
• Max output current (-12V): 0.3
• Max output current (+5Vsb): 2.5
• Power protection features: Over voltage/Overload/Short circuit/Under voltage
• Motherboard power connector: 20+4 pin ATX
• Number of SATA power connectors: 4
• Peripheral (Molex) power connectors (4-pin): 2
• PCI Express power connectors (6+2 pin): 2
• Floppy drive power connector: 1
• Cabling type: Non-Modular
• Purpose: PC
• Power supply unit (PSU) form factor: ATX
• ATX version: 2.3
• Product colour: Black
• Fan diameter: 120
• Width: 150
• Depth: 140
• Height: 87
• Model name: GPS-600A8
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.004533
• Unit Calculated Weight: 2
