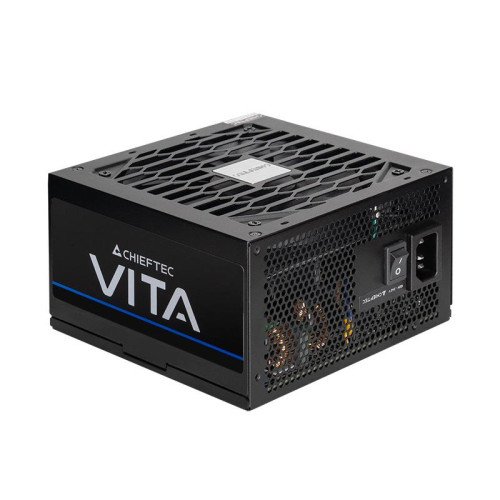

CASE PSU ATX 650W/BPX-650-S CHIEFTEC

Technical Specifications

• Summary: Chieftec Vita BPX-650-S. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,450 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active. Width: 140 mm, Depth: 150 mm, Height: 86 mm
• Name: CASE PSU ATX 650W/BPX-650-S CHIEFTEC
• Category Code: PSU
• Total power: 650
• AC input voltage: 100 - 240
• AC input frequency: 50/60
• Input current: 8-4
• Power Factor Correction (PFC) type: Active
• Combined power (-12V): 3.6
• Combined power (+5Vsb): 15
• Max output current (+3.3V): 18
• Max output current (+12V): 54.1
• Max output current (+5V): 18
• Max output current (-12V): 0.3
• Max output current (+5Vsb): 3
• Power protection features: Over current/Over voltage/Overheating/Overload/Short circuit/Surge and inrush/Under voltage
• Motherboard power connector: 24-pin ATX
• Motherboard power cable length: 650
• Number of SATA power connectors: 6
• SATA power cable length: 150/450
• Peripheral (Molex) power connectors (4-pin): 2
• EPS power connector (4+4 pin): Yes
• PCI Express power connectors (6+2 pin): 2
• ATX Power connector (24-pin): Yes
• Number of EPS connectors: 2
• Cabling type: Non-Modular
• 80 PLUS certification: 80 PLUS Bronze
• Purpose: PC
• Power supply unit (PSU) form factor: ATX
• ATX version: 2.53
• Product colour: Black
• Cooling type: Active
• Width: 140
• Depth: 150
• Height: 86
• Weight: 1900
• Package weight: 2700
• Package type: Box
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.009996
• Unit Calculated Weight: 2
