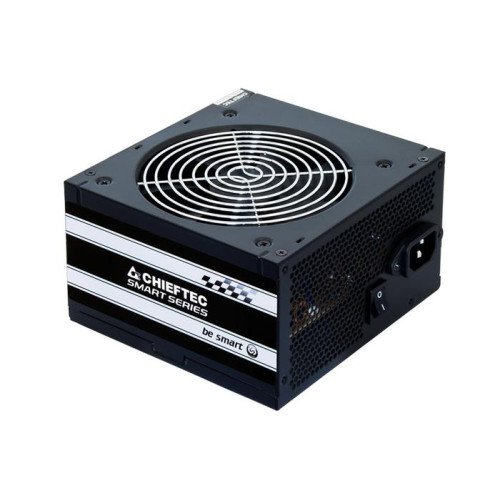

CASE PSU ATX 700W/GPS-700A8 CHIEFTEC

Technical Specifications

• Description:

  The smart series offers both quality and efficiency. The PSU itself is painted in decent black, equipped with long native cables, a power cord, and a solid carton to protect it. With an efficiency of over 80%, the SMART SERIES fulfills the requirement of green power at an attractive price.

• Summary: Chieftec Smart GPS-700A8. Total power: 700 W, AC input voltage: 230 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 87 mm
• Vendor Homepage: https://www.chieftec.eu/products-detail/178/SMART_SERIES/243/GPS-700A8
• Name: CASE PSU ATX 700W/GPS-700A8 CHIEFTEC
• Category Code: PSU
• Total power: 700
• AC input voltage: 230
• Power factor: 0.9
• Power Factor Correction (PFC) type: Active
• Combined power (-12V): 3.6
• Combined power (+5Vsb): 12.5
• Max output current (+3.3V): 22
• Max output current (+12V1): 54
• Max output current (+5V): 22
• Max output current (-12V): 0.3
• Max output current (+5Vsb): 2.5
• Efficiency: 80
• Power protection features: Over voltage/Overload/Short circuit/Under voltage
• Motherboard power connector: 20+4 pin ATX
• Number of SATA power connectors: 6
• Peripheral (Molex) power connectors (4-pin): 2
• EPS power connector (8-pin): Yes
• PCI Express power connectors (6+2 pin): 2
• Floppy drive power connector: 1
• Cabling type: Non-Modular
• 80 PLUS certification: No
• Purpose: PC
• Power supply unit (PSU) form factor: PS/2
• ATX version: 2.3
• Product colour: Black
• Cooling type: Active
• Fan diameter: 120
• Number of fans: 1
• Width: 150
• Depth: 140
• Height: 87
• Weight: 1620
• Model name: GPS-700A8
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.003713
• Unit Calculated Weight: 1.74
