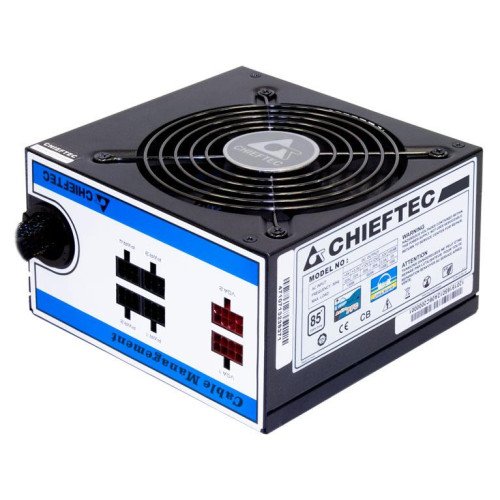

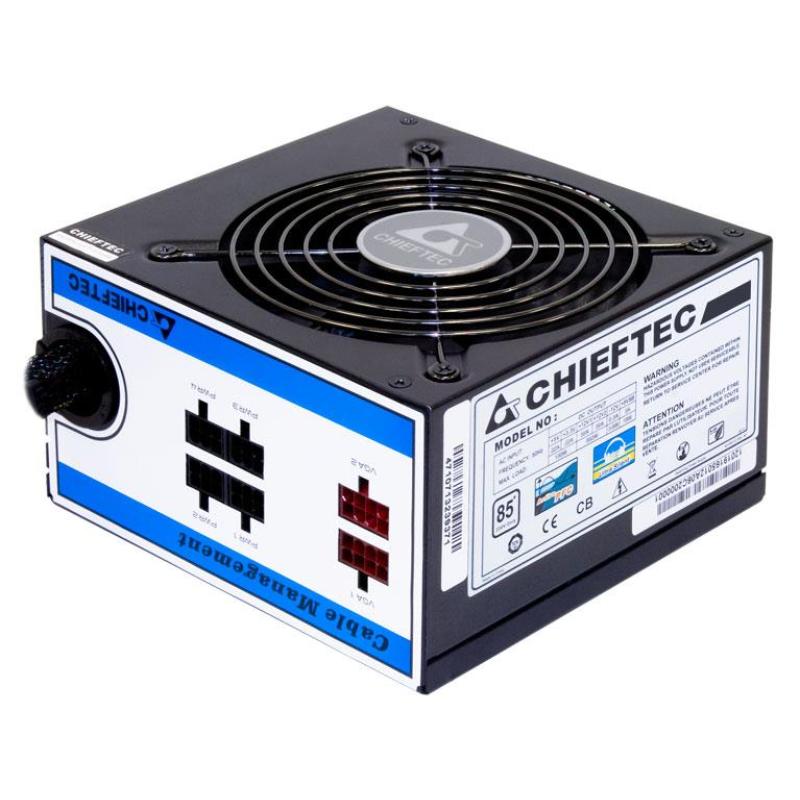

CASE PSU ATX 750W/CTG-750C CHIEFTEC

CASE PSU ATX 750W/CTG-750C CHIEFTEC
CASE PSU ATX 750W/CTG-750C CHIEFTEC
  • Total power: 750
  • 80 PLUS certification: 80 PLUS
  • Power supply unit (PSU) form factor: ATX
  • Fan diameter: 120
  • Number of fans: 1
    • Врз основа на 0 коментари. - Напиши коментар
    5,238ден.
    • Достапност: Нема на залиха
    • Шифра: 404108
    • Гарантен рок: 12 месеци
    • Рок на испорака: 13-16 дена
    CHIEFTEC
    Во кошничка
    Листа на желби Спореди
    Сподели

    Technical Specifications

    • Summary: Chieftec CTG-750C. Total power: 750 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Semi-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS, Certification: CE, CB, FCC
    • Vendor Homepage: https://www.chieftec.eu/en/psus/a-80-series/ctg-750c.html
    • Name: CASE PSU ATX 750W/CTG-750C CHIEFTEC
    • Category Code: PSU
    • Total power: 750
    • AC input voltage: 230
    • AC input frequency: 50
    • Input current: 6
    • Power factor: 0.9
    • Power Factor Correction (PFC) type: Active
    • Combined power (+3.3V): 130
    • Combined power (+12V): 648
    • Combined power (+5V): 130
    • Combined power (-12V): 3.6
    • Combined power (+5Vsb): 15
    • Max output current (+3.3V): 22
    • Max output current (+12V1): 35
    • Max output current (+12V2): 35
    • Max output current (+5V): 22
    • Max output current (-12V): 0.3
    • Max output current (+5Vsb): 3
    • Efficiency: 85
    • Power protection features: Over current/Over voltage/Overheating/Overload/Short circuit/Under voltage
    • Motherboard power connector: 24-pin ATX
    • Number of SATA power connectors: 6
    • Peripheral (Molex) power connectors (4-pin): 4
    • EPS power connector (8-pin): Yes
    • PCI Express power connectors (6+2 pin): 2
    • CPU P4 connector (4-pin): 1
    • Floppy drive power connector: 2
    • CPU power connectors (8-pin): 1
    • Cabling type: Semi-Modular
    • 80 PLUS certification: 80 PLUS
    • Purpose: PC
    • Power supply unit (PSU) form factor: ATX
    • ATX version: 2.3
    • Mean time between failures (MTBF): 100000
    • Product colour: Black
    • Cooling type: Active
    • Fan diameter: 120
    • Number of fans: 1
    • Fan location: Top
    • Compliance certificates: RoHS
    • Certification: CE, CB, FCC
    • Width: 150
    • Depth: 140
    • Height: 87
    • Package type: Box
    • Harmonized System (HS) code: 84733020
    • Model name: CTG-750C
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.004275
    • Unit Calculated Weight: 2
