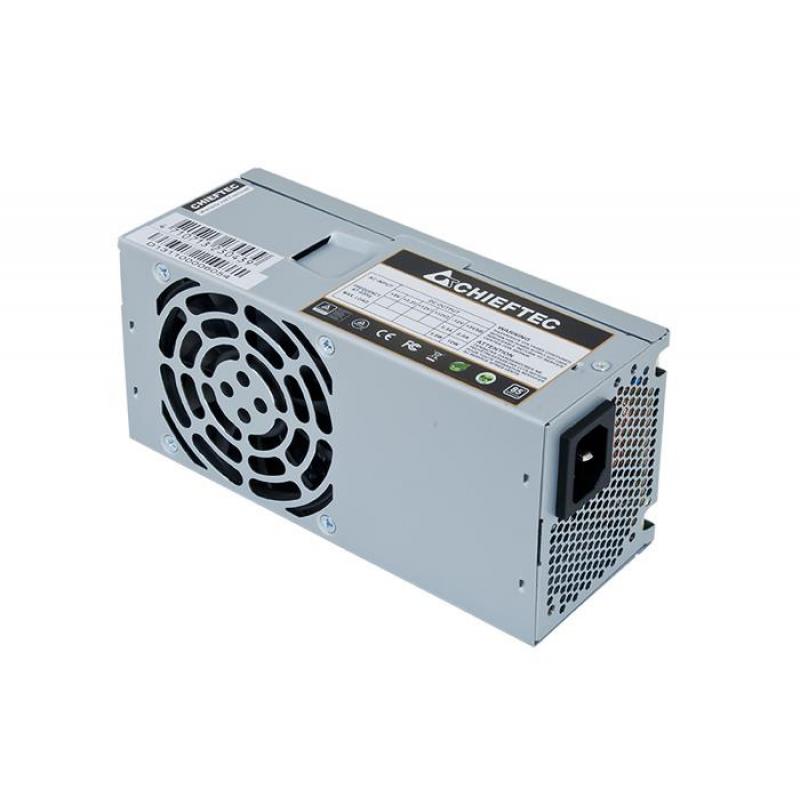

CASE PSU TFX 300W/GPF-300P CHIEFTEC

CASE PSU TFX 300W/GPF-300P CHIEFTEC
CASE PSU TFX 300W/GPF-300P CHIEFTEC
  • Total power: 300
  • 80 PLUS certification: 80 PLUS Bronze
  • Power supply unit (PSU) form factor: TFX
  • Fan diameter: 80
  • Number of fans: 1
    • Врз основа на 0 коментари. - Напиши коментар
    3,103ден.
    • Достапност: Има залиха
    • Бренд: CHIEFTEC
    • Шифра: 457896
    • Гарантен рок: 12 months
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: Chieftec Smart 300W. Total power: 300 W, AC input voltage: 115 - 230 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 30 cm, SATA power cable length: 150,350 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: TFX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Grey, Cooling type: Active, Fan diameter: 8 cm. Compliance certificates: RoHS
    • Vendor Homepage: https://www.chieftec.eu/en/psus/tfx/smart-series/gpf-300p.html
    • Name: CASE PSU TFX 300W/GPF-300P CHIEFTEC
    • Category Code: PSU
    • Total power: 300
    • AC input voltage: 115 - 230
    • AC input frequency: 47 - 63
    • Input current: 6.3
    • Power factor: 0.9
    • Power Factor Correction (PFC) type: Active
    • Combined power (+3.3V): 95
    • Combined power (+5V): 95
    • Combined power (-12V): 3.6
    • Combined power (+5Vsb): 10
    • Max output current (+3.3V): 16
    • Max output current (+12V1): 14
    • Max output current (+12V2): 15
    • Max output current (+5V): 15
    • Max output current (-12V): 0.3
    • Max output current (+5Vsb): 2
    • Power protection features: Over voltage/Overheating/Overload/Short circuit/Under voltage
    • Motherboard power connector: 20+4 pin ATX
    • Motherboard power cable length: 300
    • Number of SATA power connectors: 4
    • SATA power cable length: 150/350
    • Peripheral (Molex) power connectors (4-pin): 2
    • Peripheral (Molex) power cable length: 150/350
    • EPS power connector (4+4 pin): Yes
    • CPU power cable length: 350
    • Floppy disk drive cable length: 150
    • Floppy drive power connector: 1
    • Cabling type: Non-Modular
    • 80 PLUS certification: 80 PLUS Bronze
    • Purpose: PC/Server
    • Power supply unit (PSU) form factor: TFX
    • ATX version: 2.3
    • Product colour: Grey
    • Cooling type: Active
    • Fan diameter: 80
    • Number of fans: 1
    • Compliance certificates: RoHS
    • Width: 85
    • Depth: 175
    • Height: 65
    • Weight: 1070
    • Package weight: 1130
    • Harmonized System (HS) code: 84733020
    • Units per Pallet: 0
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.001134
    • Unit Calculated Weight: 1
    Specs
    80 PLUS certification 80 PLUS Bronze
    AC input frequency 47 - 63
    AC input voltage 115 - 230
    ATX version 2.3
    Cabling type Non-Modular
    Category Code PSU
    Combined power (+3.3V) 95
    Combined power (+5V) 95
    Combined power (+5Vsb) 10
    Combined power (-12V) 3.6
    Compliance certificates RoHS
    Cooling type Active
    CPU power cable length 350
    Depth 175
    Description

    The latest generation of TFX power supplies comes with a new model: GPF-300P (12V version 2.3). Equipped with both a state-of-the-art interior and 80PLUS® Bronze efficiency, this power supply is ideal for home entertainment systems or small size systems. Compatible with both Intel/AMD processors, featuring with active PFC and a smooth running, temperature-controlled fan, the CHIEFTEC GPF-300P provides reliable performance for enthusiast seeking for efficiency.
    EPS power connector (4+4 pin) Yes
    Fan diameter 80
    Floppy disk drive cable length 150
    Floppy drive power connector 1
    Harmonized System (HS) code 84733020
    Height 65
    Input current 6.3
    Max output current (+12V1) 14
    Max output current (+12V2) 15
    Max output current (+3.3V) 16
    Max output current (+5V) 15
    Max output current (+5Vsb) 2
    Max output current (-12V) 0.3
    Motherboard power cable length 300
    Motherboard power connector 20+4 pin ATX
    Name CASE PSU TFX 300W/GPF-300P CHIEFTEC
    Number of fans 1
    Number of SATA power connectors 4
    Package weight 1130
    Peripheral (Molex) power cable length 150/350
    Peripheral (Molex) power connectors (4-pin) 2
    PictureUrl https://static.elko.cloud/ProductImages/4d76f882-732e-4d75-bded-5f24e53abefe.Jpeg
    Power factor 0.9
    Power Factor Correction (PFC) type Active
    Power protection features Over voltage/Overheating/Overload/Short circuit/Under voltage
    Power supply unit (PSU) form factor TFX
    Product colour Grey
    Purpose PC/Server
    SATA power cable length 150/350
    Summary Chieftec Smart 300W. Total power: 300 W, AC input voltage: 115 - 230 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 30 cm, SATA power cable length: 150,350 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: TFX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Grey, Cooling type: Active, Fan diameter: 8 cm. Compliance certificates: RoHS
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/4d76f882-732e-4d75-bded-5f24e53abefe.Jpeg
    Total power 300
    Unit Calculated Volume 0.001134
    Unit Calculated Weight 1
    Units per Pallet 0
    Units per Shipping Box 1
    Vendor Homepage https://www.chieftec.eu/en/psus/tfx/smart-series/gpf-300p.html
    Weight 1070
    Width 85
