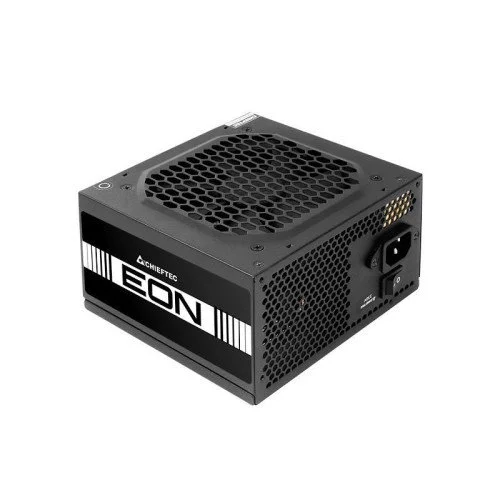

CASE PSU ATX 600W/ZPU-600S CHIEFTEC

Technical Specifications

• Summary: Chieftec EON . Total power: 600 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 450,600,750 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
• Vendor Homepage: https://www.chieftec.eu/products-detail/566/EON_Series
• Name: CASE PSU ATX 600W/ZPU-600S CHIEFTEC
• Category Code: PSU
• Total power: 600
• AC input voltage: 200 - 240
• AC input frequency: 50
• Input current: 4.5
• Maximum input current (@220V): 4.5
• Power factor: 0.9
• Power Factor Correction (PFC) type: Active
• Combined power (-12V): 4.8
• Combined power (+5Vsb): 12.5
• Max output current (+3.3V): 20
• Max output current (+12V1): 45
• Max output current (+5V): 20
• Max output current (-12V): 0.4
• Max output current (+5Vsb): 2.5
• Power protection features: Short circuit/Surge and inrush/Surge protection
• Motherboard power connector: 20+4 pin ATX
• Motherboard power cable length: 650
• Number of SATA power connectors: 4
• SATA power cable length: 450/600/750
• Peripheral (Molex) power cable length: 450/600/750
• EPS power connector (4+4 pin): Yes
• PCI Express power connectors (6+2 pin): 2
• CPU power connector (4+4 pin): Yes
• ATX power connector (20+4 pin): Yes
• Cabling type: Non-Modular
• 80 PLUS certification: 80 PLUS
• Supported motherboard form factors: ATX
• Purpose: PC/Server
• Power supply unit (PSU) form factor: ATX
• ATX version: 2.3
• Product colour: Black
• Fan diameter: 120
• On/off switch: Yes
• Width: 150
• Depth: 140
• Height: 86
• Weight: 1340
• Warranty period: 2
• Model name: ZPU-600S
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.004718
• Unit Calculated Weight: 2
