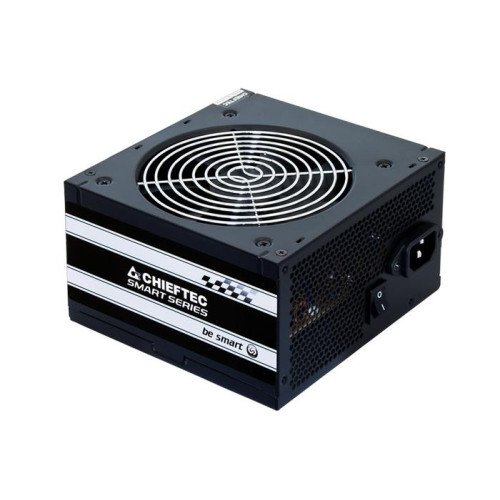

CASE PSU ATX 500W/GPS-500A8 CHIEFTEC

Technical Specifications

• Summary: Chieftec Smart GPS-500A8. Total power: 500 W, AC input voltage: 230 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 87 mm
• Vendor Homepage: https://www.chieftec.eu/products-detail/178/SMART_SERIES/239/GPS-500A8
• Name: CASE PSU ATX 500W/GPS-500A8 CHIEFTEC
• Category Code: PSU
• Total power: 500
• AC input voltage: 230
• AC input frequency: 47 - 63
• Combined power (+3.3V): 130
• Combined power (+12V): 408
• Combined power (+5V): 130
• Combined power (-12V): 3.6
• Max output current (+3.3V): 22
• Max output current (+12V): 12.5
• Max output current (+12V1): 24
• Max output current (+12V2): 21
• Max output current (+5V): 19
• Max output current (-12V): 0.3
• Max output current (+5Vsb): 3
• Efficiency: 80
• Power protection features: Over current/Over voltage/Overheating/Overload/Short circuit/Under voltage
• Motherboard power connector: 20+4 pin ATX
• Number of SATA power connectors: 3
• Peripheral (Molex) power connectors (4-pin): 2
• PCI Express power connectors (6+2 pin): 1
• Floppy drive power connector: 1
• Cabling type: Non-Modular
• Purpose: PC
• Power supply unit (PSU) form factor: ATX
• ATX version: 2.3
• Product colour: Black
• Cooling type: Active
• Fan diameter: 120
• Width: 150
• Depth: 140
• Height: 87
• Model name: GPS-500A8
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.00444
• Unit Calculated Weight: 1.5
