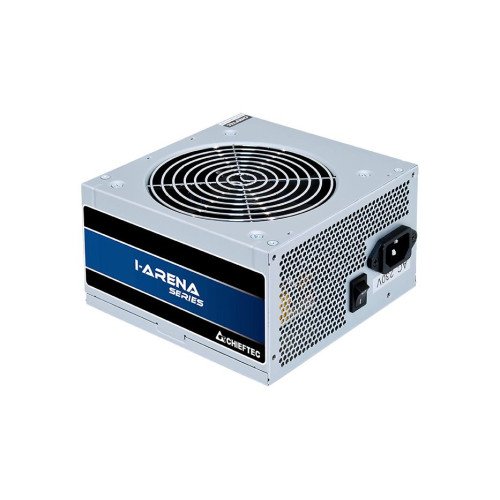

CASE PSU ATX 500W/GPB-500S CHIEFTEC

Technical Specifications

• Summary: Chieftec GPB-500S. Total power: 500 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS
• Vendor Homepage: https://www.chieftec.eu/en/psus/iarena-series/gpb-500s.html
• Name: CASE PSU ATX 500W/GPB-500S CHIEFTEC
• Category Code: PSU
• Total power: 500
• AC input voltage: 200 - 240
• AC input frequency: 47 - 63
• Input current: 4
• Power factor: 0.9
• Power Factor Correction (PFC) type: Active
• Combined power (+3.3V): 110
• Combined power (+12V): 456
• Combined power (+5V): 110
• Combined power (-12V): 3.6
• Combined power (+5Vsb): 12.5
• Max output current (+3.3V): 18
• Max output current (+12V1): 38
• Max output current (+5V): 17
• Max output current (-12V): 0.3
• Max output current (+5Vsb): 2.5
• Efficiency: 85
• Power protection features: Over voltage/Overload/Short circuit/Under voltage
• Motherboard power connector: 20+4 pin ATX
• Number of SATA power connectors: 5
• Peripheral (Molex) power connectors (4-pin): 3
• PCI Express power connectors (6+2 pin): 1
• Cabling type: Non-Modular
• Purpose: PC
• Power supply unit (PSU) form factor: PS/2
• ATX version: 2.3
• Product colour: Silver
• Cooling type: Active
• Fan diameter: 120
• Number of fans: 1
• Fan location: Top
• On/off switch: Yes
• Compliance certificates: RoHS
• Width: 140
• Depth: 150
• Height: 87
• Manual: Yes
• Package type: Box
• Harmonized System (HS) code: 84733020
• Warranty card: Yes
• Model name: GPB-500S
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.001485
• Unit Calculated Weight: 1.37
