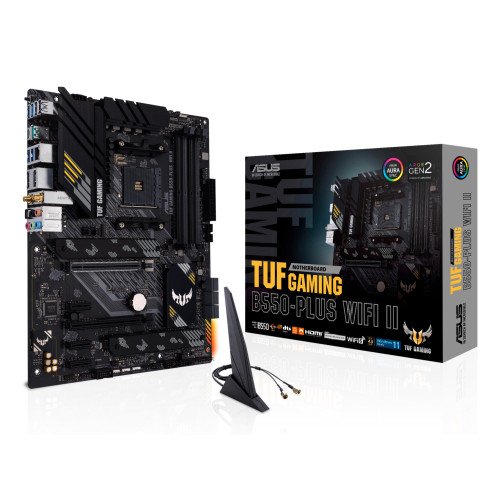

MB AMD B550 SAM4 ATX/TUF GAM B550-PLUS WIFI II ASUS

Technical Specifications

• Summary: ASUS TUF GAMING B550-PLUS WIFI II. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
• Vendor Homepage: https://www.asus.com/Motherboards-Components/Motherboards/TUF-Gaming/TUF-GAMING-B550-PLUS-WIFI-II/
• Name: MB AMD B550 SAM4 ATX/TUF GAM B550-PLUS WIFI II ASUS
• Category Code: MBA
• Motherboard chipset: AMD B550
• Product colour: Black
• Component for: PC
• Motherboard form factor: ATX
• Audio output channels: 7.1
• Motherboard chipset family: AMD
• Windows operating systems supported: Windows 10/Windows 11
• Processor manufacturer: AMD
• Processor socket: Socket AM4
• Compatible processor series: AMD Ryzen 3000 Series
• Supported processor sockets: Socket AM4
• Supported memory types: DDR4-SDRAM
• Number of memory slots: 4
• Memory slots type: DIMM
• Memory channels: Dual-channel
• ECC сompatibility: ECC
• Supported memory clock speeds: 2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/3866/4000/4133/4200/4266/4333/4400/4466/4600/4800/4866
• Maximum internal memory: 128
• Unbuffered memory: Yes
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2,SATA
• RAID support: Yes
• RAID levels: 0/1/10
• Parallel processing technology support: Not supported
• Number of displays supported: 2
• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
• Number of SATA III connectors: 6
• Front panel audio connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• Number of chassis fan connectors: 3
• EPS power connector (8-pin): Yes
• Number of COM connectors: 1
• Thunderbolt headers: 1
• TPM connector: Yes
• RGB LED pin header: Yes
• USB 2.0 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• DisplayPorts quantity: 1
• Headphone outputs: 1
• Line-in: Yes
• Microphone in: Yes
• S/PDIF out port: Yes
• USB connector type: USB Type-A/USB Type-C
• Ethernet LAN: Yes
• Ethernet interface type: 2.5 Gigabit Ethernet
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
• Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)
• Bluetooth: Yes
• Bluetooth version: 5.2
• PCI Express x1 (Gen 3.x) slots: 3
• PCI Express x16 (Gen 3.x) slots: 1
• PCI Express x16 (Gen 4.x) slots: 1
• Number of M.2 (M) slots: 2
• BIOS type: UEFI AMI
• BIOS memory size: 256
• Harmonized System (HS) code: 84733020
• Width: 305
• Depth: 244
• Height: 75
• Cables included: SATA
• Drivers included: Yes
• Weight: 945
• Packaging content: 2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 Rubber package 1 x M.2 SSD screw package 1 x TUF Gaming sticker 1 x Support DVD 1 x TUF Certification card 1 x User guide
• Unit Calculated Volume: 0.006641
• Unit Calculated Weight: 1.59
