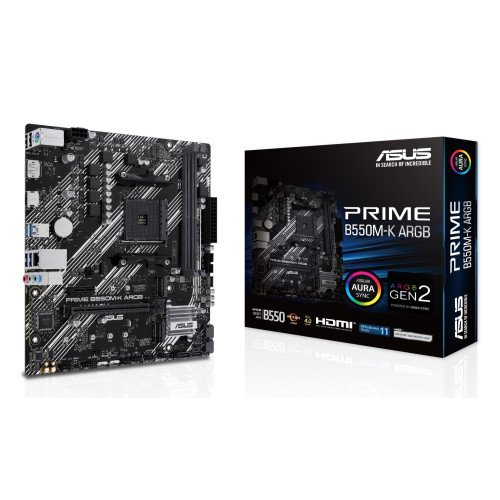

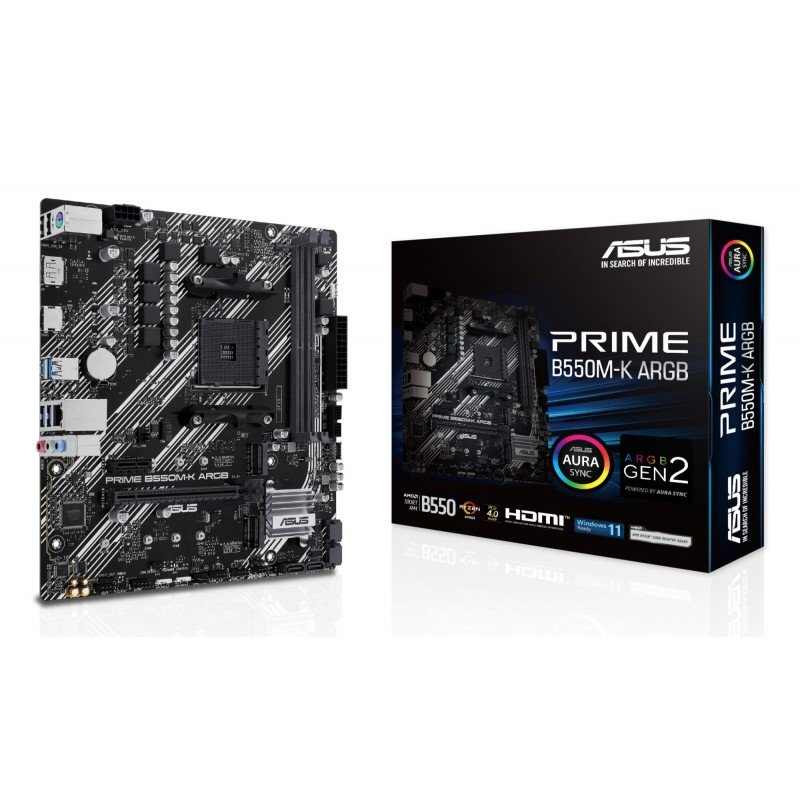

MB AMD B550 SAM4 MATX/PRIME B550M-K ARGB ASUS

Technical Specifications

• Summary: ASUS PRIME B550M-K ARGB. Processor manufacturer: AMD, Processor socket: Socket AM4. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
• Vendor Homepage: https://www.asus.com/motherboards-components/motherboards/prime/prime-b550m-k-argb/
• Name: MB AMD B550 SAM4 MATX/PRIME B550M-K ARGB ASUS
• Category Code: MBA
• Motherboard chipset: AMD B550
• Component for: PC
• Motherboard form factor: micro ATX
• Audio output channels: 7.1
• Motherboard chipset family: AMD
• Windows operating systems supported: Windows 10 x64/Windows 11
• Processor manufacturer: AMD
• Processor socket: Socket AM4
• Supported memory types: DDR4-SDRAM
• Number of memory slots: 2
• Memory slots type: DIMM
• Memory channels: Dual-channel
• Supported memory clock speeds: 2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/3866/4000/4133/4200/4266/4333/4400/4466/4600/4866/5100
• Maximum internal memory: 64
• Unbuffered memory: Yes
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2
• RAID support: Yes
• RAID levels: 0/1/10
• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
• Number of SATA III connectors: 4
• S/PDIF out connector: Yes
• Front panel audio connector: Yes
• Front panel connector: Yes
• ATX Power connector (24-pin): Yes
• CPU fan connector: Yes
• Number of chassis fan connectors: 2
• 12V power connector: Yes
• Number of COM connectors: 1
• TPM connector: Yes
• RGB LED pin header: Yes
• USB 2.0 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• Ethernet LAN (RJ-45) ports: 1
• PS/2 ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• DisplayPorts quantity: 1
• DisplayPort version: 1.4
• Headphone outputs: 1
• Line-in: Yes
• Microphone in: Yes
• Ethernet LAN: Yes
• Ethernet interface type: Gigabit Ethernet
• Wake-on-LAN ready: Yes
• PCI Express x1 (Gen 3.x) slots: 1
• PCI Express x16 (Gen 3.x) slots: 1
• PCI Express x16 (Gen 4.x) slots: 1
• Number of M.2 (M) slots: 2
• BIOS type: EFI AMI
• BIOS memory size: 128
• Clear CMOS jumper: Yes
• Package width: 260
• Package depth: 270
• Package height: 515
• Package weight: 960
• Width: 244
• Depth: 221
• Height: 36.5
• Cables included: SATA
• Weight: 460
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.00588
• Unit Calculated Weight: 1
