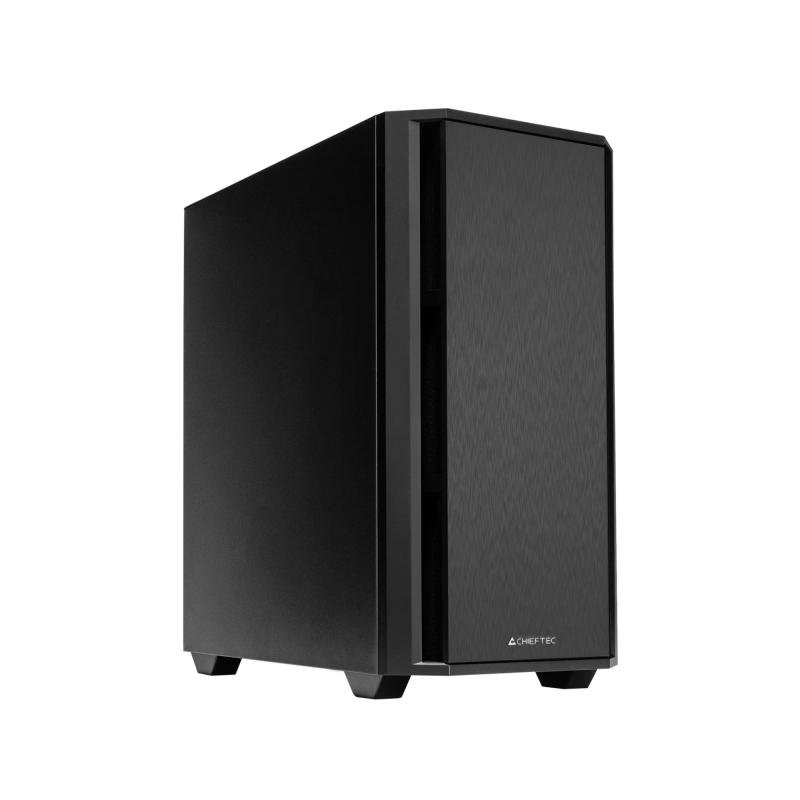

Pro mini AZ-01B-OP Black

Pro mini AZ-01B-OP Black
Нема на залиха
Pro mini AZ-01B-OP Black
  • Form factor: Mini Tower
  • Number of 3.5" bays: 1
  • Number of 2.5" bays: 2
  • Power supply included: No
    • Врз основа на 0 коментари. - Напиши коментар
    2,429ден.
    • Достапност: Нема на залиха
    • Бренд: CHIEFTEC
    • Шифра: 426148
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: Chieftec AZ-01B-OP. Form factor: Mini Tower, Type: PC, Product colour: Black. Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm, Rear fans diameters supported: 120 mm. Supported HDD sizes: 2.5,3.5". Width: 212 mm, Depth: 360 mm, Height: 420 mm. Package weight: 6 kg
    • Vendor Homepage: https://www.chieftec.eu/products-detail/587/AZ-01B-OP
    • Name: CASE MIDITOWER ATX W/O PSU/PROMINI BLK AZ-01B-OP CHIEFTEC
    • Category Code: CAS
    • Model name: Pro mini AZ-01B-OP
    • Type: PC
    • Form factor: Mini Tower
    • Product colour: Black
    • Supported motherboard form factors: micro ATX/Mini-ITX/uATX
    • Number of 3.5" bays: 1
    • Number of 2.5" bays: 2
    • Number of internal 3.5" bays: 1
    • Number of storage drives supported: 3
    • Full-Height expansion slots: 4
    • Number of expansion slots: 4
    • Anti-dust filter: Yes
    • On/off button: Yes
    • Reset button: Yes
    • Maximum CPU cooler height: 165
    • Maximum graphics card length: 330
    • Maximum PSU length: 180
    • Design features: Sound-absorbing material added to the front, left and right panels
    • Audio input: Yes
    • Audio output: Yes
    • USB 2.0 ports quantity: 1
    • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
    • USB Type-C ports quantity: 1
    • Number of front fans supported (max): 3
    • Front fans diameters supported: 120/140
    • Rear fans installed: 1x 120 mm
    • Number of rear fans supported (max): 1
    • Rear fans diameters supported: 120
    • Number of top fans supported (max): 2
    • Top fans diameters supported: 120/140
    • Liquid cooling capability: Yes
    • Front radiator sizes supported: 240/280/360
    • Top radiator sizes supported: 240/280
    • Supported HDD sizes: 2.5/3.5
    • Width: 212
    • Depth: 360
    • Height: 420
    • Weight: 5150
    • Material thickness: 0.6
    • Package weight: 6000
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.06451
    • Unit Calculated Weight: 6
    Specifications
    Number of 2.5\" bays 2
    Number of 3.5\" bays 1
    Number of internal 3.5\" bays 1
    Specs
    Anti-dust filter Yes
    Audio input Yes
    Audio output Yes
    Category Code CAS
    Depth 360
    Description

    The CHIEFTEC Pro Mini presents a modern m-ATX mini tower PC case with a timelessly elegant, brushed front panel, complemented by an interior designed with a modern layout for optimal hardware and cooling compatibility. The CHIEFTEC Pro Mini features added sound-absorbing material on the side and front panels to provide an optimized noise level, while a total of 8 possible fan mounts provides flexible cooling configurations. The Pro Mini is ready to deliver customers an ideal combination of performance, noise and quality design.

    • Elegant & modern design
    • Sound-absorbing material
    • 1x 120mm PWM fan pre-installed
    Design features Sound-absorbing material added to the front, left and right panels
    Form Factor Mini Tower
    Front fans diameters supported 120/140
    Front radiator sizes supported 240/280/360
    Full-Height expansion slots 4
    Height 420
    Liquid cooling capability Yes
    Material thickness 0.6
    Maximum CPU cooler height 165
    Maximum graphics card length 330
    Maximum PSU length 180
    Model name Pro mini AZ-01B-OP
    Name CASE MIDITOWER ATX W/O PSU/PROMINI BLK AZ-01B-OP CHIEFTEC
    Number of expansion slots 4
    Number of front fans supported (max) 3
    Number of rear fans supported (max) 1
    Number of storage drives supported 3
    Number of top fans supported (max) 2
    On/off button Yes
    Package weight 6000
    PictureUrl https://static.elko.cloud/ProductImages/e3d64241-1bab-43a4-a2ee-29ca5ccd430e.Jpeg
    Product colour Black
    Rear fans diameters supported 120
    Rear fans installed 1x 120 mm
    Reset button Yes
    Summary Chieftec AZ-01B-OP. Form factor: Mini Tower, Type: PC, Product colour: Black. Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm, Rear fans diameters supported: 120 mm. Supported HDD sizes: 2.5,3.5". Width: 212 mm, Depth: 360 mm, Height: 420 mm. Package weight: 6 kg
    Supported HDD sizes 2.5/3.5
    Supported motherboard form factors micro ATX/Mini-ITX/uATX
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/e3d64241-1bab-43a4-a2ee-29ca5ccd430e.Jpeg
    Top fans diameters supported 120/140
    Top radiator sizes supported 240/280
    Type PC
    Unit Calculated Volume 0.06451
    Unit Calculated Weight 6
    Units per Shipping Box 1
    USB 2.0 ports quantity 1
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
    USB Type-C ports quantity 1
    Vendor Homepage https://www.chieftec.eu/products-detail/587/AZ-01B-OP
    Weight 5150
    Width 212
