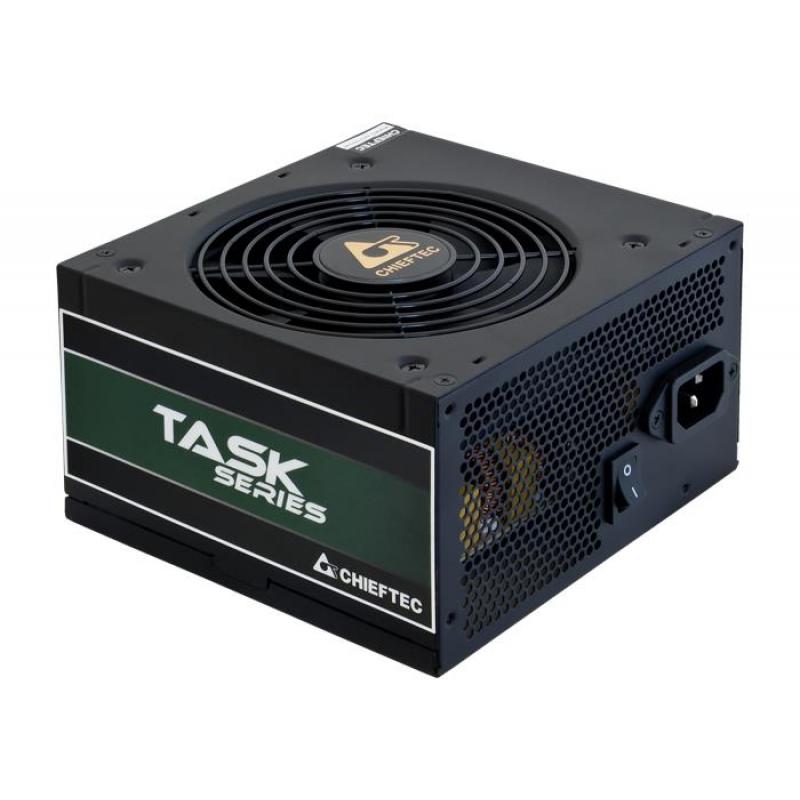

CASE PSU ATX 500W/TPS-500S CHIEFTEC

CASE PSU ATX 500W/TPS-500S CHIEFTEC
Нема на залиха
CASE PSU ATX 500W/TPS-500S CHIEFTEC
  • Total power: 500
  • 80 PLUS certification: 80 PLUS Bronze
  • Power supply unit (PSU) form factor: ATX
  • Fan diameter: 120
  • Number of fans: 1
    • Врз основа на 0 коментари. - Напиши коментар
    3,770ден.
    • Достапност: Нема на залиха
    • Бренд: CHIEFTEC
    • Шифра: 404110
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: Chieftec Task TPS-500S. Total power: 500 W, AC input voltage: 115 - 230 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS, Certification: ErP, RoHS, CE, CB, EAC, TÃœV
    • Vendor Homepage: https://www.chieftec.eu/products-detail/180/TASK_SERIES/246/TPS-500S
    • Name: CASE PSU ATX 500W/TPS-500S CHIEFTEC
    • Category Code: PSU
    • Total power: 500
    • AC input voltage: 115 - 230
    • AC input frequency: 47 - 63
    • Power Factor Correction (PFC) type: Active
    • Combined power (+3.3V): 110
    • Combined power (+5V): 110
    • Max output current (+3.3V): 18
    • Max output current (+12V1): 38
    • Max output current (+5V): 17
    • Max output current (+5Vsb): 2.5
    • Efficiency: 85
    • Power protection features: Over power/Over voltage/Overload/Short circuit
    • Motherboard power connector: 24-pin ATX
    • Number of SATA power connectors: 5
    • Peripheral (Molex) power connectors (4-pin): 3
    • EPS power connector (4+4 pin): Yes
    • PCI Express power connectors (6+2 pin): 2
    • Cabling type: Non-Modular
    • 80 PLUS certification: 80 PLUS Bronze
    • Purpose: PC
    • Power supply unit (PSU) form factor: ATX
    • ATX version: 2.3
    • Product colour: Black
    • Cooling type: Active
    • Fan diameter: 120
    • Number of fans: 1
    • Fan location: Side
    • On/off switch: Yes
    • Compliance certificates: RoHS
    • Certification: ErP, RoHS, CE, CB, EAC, TÃœV
    • Width: 150
    • Depth: 140
    • Height: 86
    • Harmonized System (HS) code: 84733020
    • Model name: TPS-500S
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.004662
    • Unit Calculated Weight: 2
    Specs
    80 PLUS certification 80 PLUS Bronze
    AC input frequency 47 - 63
    AC input voltage 115 - 230
    ATX version 2.3
    Cabling type Non-Modular
    Category Code PSU
    Certification ErP, RoHS, CE, CB, EAC, TÃœV
    Combined power (+3.3V) 110
    Combined power (+5V) 110
    Compliance certificates RoHS
    Cooling type Active
    Depth 140
    Description

    The CHIEFTEC Task Series PSU’s are true to their name, and take on any task they are required for without any trouble.

    With certified 80PLUS® Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.

    • 80PLUS® Bronze certified efficiency
    • 650mm long cables for maximum case compatibility
    • All modern protection and safety features included
    Efficiency 85
    EPS power connector (4+4 pin) Yes
    Fan diameter 120
    Fan location Side
    Harmonized System (HS) code 84733020
    Height 86
    Max output current (+12V1) 38
    Max output current (+3.3V) 18
    Max output current (+5V) 17
    Max output current (+5Vsb) 2.5
    Model name TPS-500S
    Motherboard power connector 24-pin ATX
    Name CASE PSU ATX 500W/TPS-500S CHIEFTEC
    Number of fans 1
    Number of SATA power connectors 5
    On/off switch Yes
    PCI Express power connectors (6+2 pin) 2
    Peripheral (Molex) power connectors (4-pin) 3
    PictureUrl https://static.elko.cloud/ProductImages/2149a3a2-0f32-46c2-9fd6-de34b936c6e8.Jpeg
    Power Factor Correction (PFC) type Active
    Power protection features Over power/Over voltage/Overload/Short circuit
    Power supply unit (PSU) form factor ATX
    Product colour Black
    Purpose PC
    Summary Chieftec Task TPS-500S. Total power: 500 W, AC input voltage: 115 - 230 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS, Certification: ErP, RoHS, CE, CB, EAC, TÃœV
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/2149a3a2-0f32-46c2-9fd6-de34b936c6e8.Jpeg
    Total power 500
    Unit Calculated Volume 0.004662
    Unit Calculated Weight 2
    Units per Shipping Box 1
    Vendor Homepage https://www.chieftec.eu/products-detail/180/TASK_SERIES/246/TPS-500S
    Width 150
