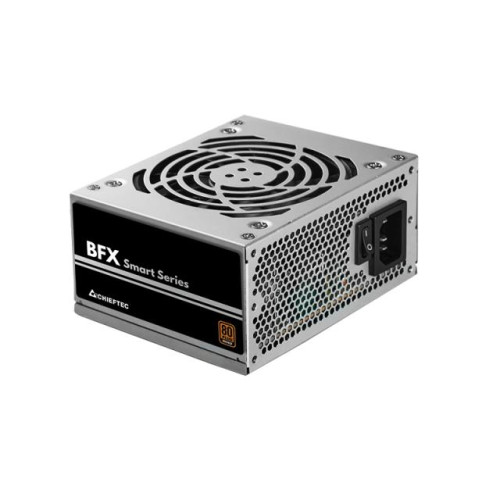

CASE PSU ATX 450W/BFX-450BS CHIEFTEC

Technical Specifications

• Description:

  The BFX Series combines an 80PLUS Bronze efciency and a modern technical platform based on DC-DC technology into a compact SFX form factor that ensured reliability and high performance. With the inclusion of a 9cm fan, while keeping the total length of the PSU to 10cm, the BFX Series stays very compact, while beneftting from a quiet fan operation. All modern protection mechanisms are included for peace of mind.

  • 80 PLUS Bronze certifed efciency
  • DC-to-DC technology
  • OCP and OTP Protection
  • Long Life 9cm fan

• Summary: Chieftec Smart 450W. Total power: 450 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 35 cm, SATA power cable length: 250 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Silver, Cooling type: Active, Fan diameter: 9 cm. Width: 125 mm, Depth: 100 mm, Height: 64 mm
• Vendor Homepage: https://www.chieftec.eu/products-detail/510/SMART_SERIES/512/_BFX-450BS
• Name: CASE PSU ATX 450W/BFX-450BS CHIEFTEC
• Category Code: PSU
• Total power: 450
• AC input voltage: 100 - 240
• AC input frequency: 47 - 63
• Input current: 7
• Power factor: 0.9
• Power Factor Correction (PFC) type: Active
• Combined power (+3.3V): 120
• Combined power (+12V): 450
• Combined power (+5V): 120
• Combined power (-12V): 3.6
• Combined power (+5Vsb): 12.5
• Max output current (+3.3V): 20
• Max output current (+12V): 37.5
• Max output current (+5V): 20
• Max output current (-12V): 0.3
• Max output current (+5Vsb): 2.5
• Power protection features: Over current/Over voltage/Overheating/Overload/Short circuit/Under voltage
• Motherboard power connector: 20+4 pin ATX
• Motherboard power cable length: 350
• Number of SATA power connectors: 3
• SATA power cable length: 250
• Peripheral (Molex) power connectors (4-pin): 2
• Peripheral (Molex) power cable length: 150
• EPS power connector (4+4 pin): Yes
• PCI Express power connectors (6+2 pin): 2
• PCI Express power cable length: 350
• Floppy disk drive cable length: 150
• Floppy drive power connector: 1
• Cabling type: Non-Modular
• 80 PLUS certification: 80 PLUS Bronze
• Purpose: PC
• Power supply unit (PSU) form factor: ATX
• ATX version: 2.3
• Product colour: Black/Silver
• Cooling type: Active
• Fan diameter: 90
• Width: 125
• Depth: 100
• Height: 64
• Weight: 1500
• Harmonized System (HS) code: 84733020
• Model name: BFX-450BS
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.001482
• Unit Calculated Weight: 1.5
