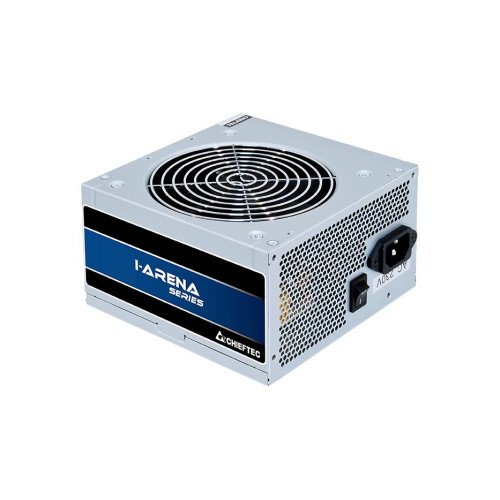

CASE PSU ATX 450W/GPB-450S CHIEFTEC

CASE PSU ATX 450W/GPB-450S CHIEFTEC
Нема на залиха
CASE PSU ATX 450W/GPB-450S CHIEFTEC
  • Total power: 450
  • Power supply unit (PSU) form factor: PS/2
  • Fan diameter: 120
  • Number of fans: 1
    • Врз основа на 0 коментари. - Напиши коментар
    3,072ден.
    • Достапност: Нема на залиха
    • Бренд: CHIEFTEC
    • Шифра: 433308
    • Гарантен рок: 12 месеци
    • Достава: 13-16 дена
    Во кошничка
    Листа на желби Спореди
    1

    Technical Specifications

    • Summary: Chieftec GPB-450S. Total power: 450 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS
    • Vendor Homepage: https://www.chieftec.eu/en/psus/iarena-series/gpb-450s.html
    • Name: CASE PSU ATX 450W/GPB-450S CHIEFTEC
    • Category Code: PSU
    • Total power: 450
    • AC input voltage: 200 - 240
    • AC input frequency: 47 - 63
    • Input current: 3.5
    • Power factor: 0.9
    • Power Factor Correction (PFC) type: Active
    • Combined power (+3.3V): 100
    • Combined power (+12V): 408
    • Combined power (+5V): 100
    • Combined power (-12V): 3.6
    • Combined power (+5Vsb): 12.5
    • Max output current (+3.3V): 17
    • Max output current (+12V1): 34
    • Max output current (+5V): 16
    • Max output current (-12V): 0.3
    • Max output current (+5Vsb): 2.5
    • Efficiency: 85
    • Power protection features: Over voltage/Overload/Short circuit/Under voltage
    • Motherboard power connector: 20+4 pin ATX
    • Number of SATA power connectors: 5
    • Peripheral (Molex) power connectors (4-pin): 3
    • PCI Express power connectors (6+2 pin): 1
    • Cabling type: Non-Modular
    • Purpose: PC
    • Power supply unit (PSU) form factor: PS/2
    • ATX version: 2.3
    • Product colour: Silver
    • Cooling type: Active
    • Fan diameter: 120
    • Number of fans: 1
    • Fan location: Top
    • On/off switch: Yes
    • Compliance certificates: RoHS
    • Width: 140
    • Depth: 150
    • Height: 87
    • Manual: Yes
    • Package type: Box
    • Harmonized System (HS) code: 84733020
    • Warranty card: Yes
    • Model name: GPB-450S
    • Units per Shipping Box: 1
    • Unit Calculated Volume: 0.002016
    • Unit Calculated Weight: 1.35
    Specs
    AC input frequency 47 - 63
    AC input voltage 200 - 240
    ATX version 2.3
    Cabling type Non-Modular
    Category Code PSU
    Combined power (+12V) 408
    Combined power (+3.3V) 100
    Combined power (+5V) 100
    Combined power (+5Vsb) 12.5
    Combined power (-12V) 3.6
    Compliance certificates RoHS
    Cooling type Active
    Depth 150
    Description

    High efficiency and a highly competitive pricing coupled with the latest “state-of-the-art” PCB design and components distinguish the 6 new power supplies of the iARENA series. Fully aware of environmental requirements, CHIEFTEC offers European PC manufacturers a solution, fixed @230V and with reduced procurement costs thanks to the resource-friendly bulk packaging.
    Efficiency 85
    Fan diameter 120
    Fan location Top
    Harmonized System (HS) code 84733020
    Height 87
    Input current 3.5
    Manual Yes
    Max output current (+12V1) 34
    Max output current (+3.3V) 17
    Max output current (+5V) 16
    Max output current (+5Vsb) 2.5
    Max output current (-12V) 0.3
    Model name GPB-450S
    Motherboard power connector 20+4 pin ATX
    Name CASE PSU ATX 450W/GPB-450S CHIEFTEC
    Number of fans 1
    Number of SATA power connectors 5
    On/off switch Yes
    Package type Box
    PCI Express power connectors (6+2 pin) 1
    Peripheral (Molex) power connectors (4-pin) 3
    PictureUrl https://static.elko.cloud/ProductImages/ed420fa4-0554-4827-9923-7a51273a5328.Jpeg
    Power factor 0.9
    Power Factor Correction (PFC) type Active
    Power protection features Over voltage/Overload/Short circuit/Under voltage
    Power supply unit (PSU) form factor PS/2
    Product colour Silver
    Purpose PC
    Summary Chieftec GPB-450S. Total power: 450 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS
    thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/ed420fa4-0554-4827-9923-7a51273a5328.Jpeg
    Total power 450
    Unit Calculated Volume 0.002016
    Unit Calculated Weight 1.35
    Units per Shipping Box 1
    Vendor Homepage https://www.chieftec.eu/en/psus/iarena-series/gpb-450s.html
    Warranty card Yes
    Width 140
